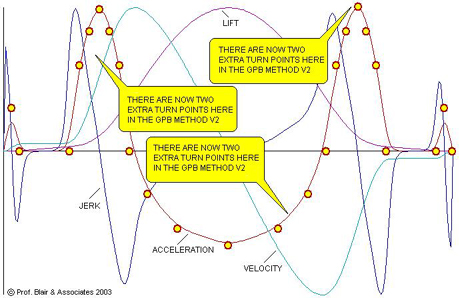

Graphical output from the GPB2 method of Valve Lift Design program (back)

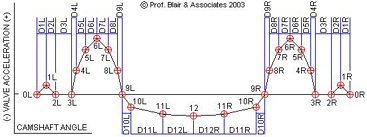

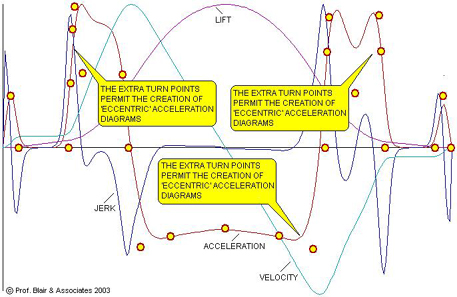

The GPB2 Method designs the Valve Lift Profile by manipulating the acceleration curve as illustrated in the following examples, but has more points to manipulate than the original method:
