Output graphics of the dynamic valve lift with the gas force applied to the valve (back)

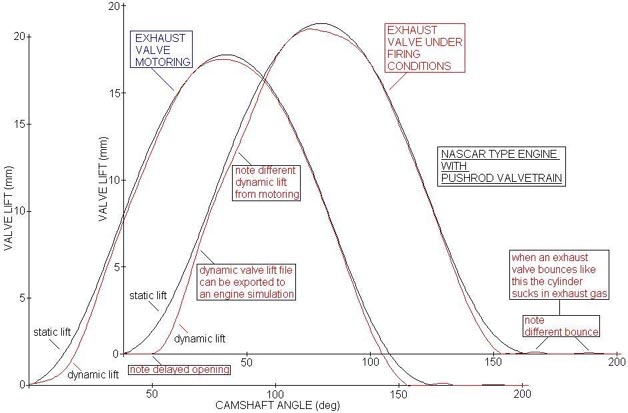

Static and Dynamic Valve Lift Graph - with gas forces at the valve:
There are 2 graphs superimposed - one motored and one under firing conditions (gas force applied)
